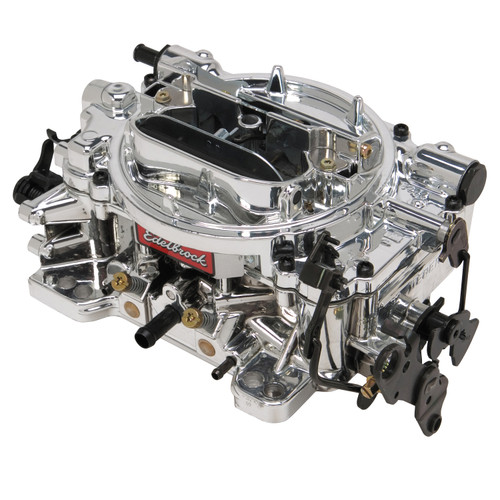

The Edelbrock 180249 Remanufactured Thunder Series AVS 500 CFM manual choke EnduraShine carburetor has been designed and calibrated to deliver optimum street performance. Several characteristics make the 180249 Remanufactured Thunder Series AVS 500 CFM manual choke EnduraShine carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The third characteristic is the primary and secondary booster clusters that are utilized offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Fourth the unique Thunder Series' Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit with simple hand tools while on your vehicle. It's quick. It's simple. It's effective. It can be easily adjusted - in seconds - to suit your application.. no extra parts required to achieve optimum performance. Simply put the Edelbrock 180249 Remanufactured Thunder Series AVS 500 CFM manual choke EnduraShine carburetor is undeniably the most innovative and dependable street performance carburetor available today.
Additional Attributes:
- GTIN: 00085347995547
- Adjustable Float Level: No
- Air Cleaner Flange Diameter: 5.125
- Barrel Quantity: 4
- Base Length: 6.25
- Base Width: 5.937
- Body Height: 3.25
- Body Material: Aluminum
- Center Hung Floats: No
- Choke Type: Manual
- EGR Port: No
- Finish: EnduraShine
- Flange Shape: Square Bore
- Float Drop: 1.0
- Float Level: 0.437
- Float Material: Brass
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Inlet Fitting Thread Diameter: 0.625
- Linkage Attached: No
- Main Venturi Diameter: 1.190
- Marine Approved: No
- Maximum Flow Rating: 500
- Metering Rod Length: 3.15
- Metering Rod Power Tip Diameter: 0.052
- Mounting Hardware Included: No
- Mounting Hole Diameter: 0.355
- Mounting Hole Quantity: 8
- Primary Jet Diameter: 0.086
- RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Secondary Jet Diameter: 0.095
- Small Venturi Diameter: 1.560
- Spacer Included: No
- Street Legal: No
Extended Information:
- Emissions : EPA Eligible
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13.25 x 7.375 x 6.75 inches
